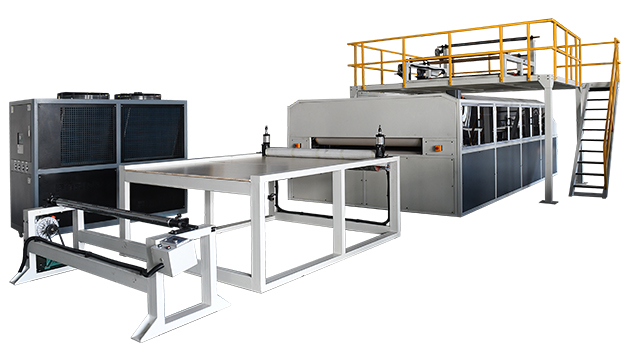

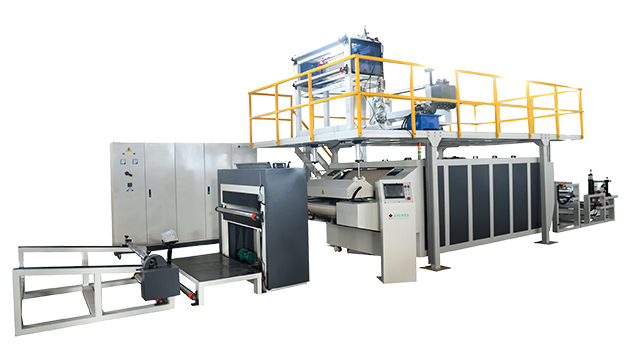

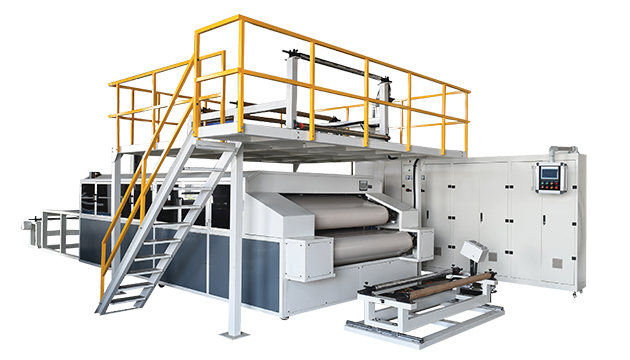

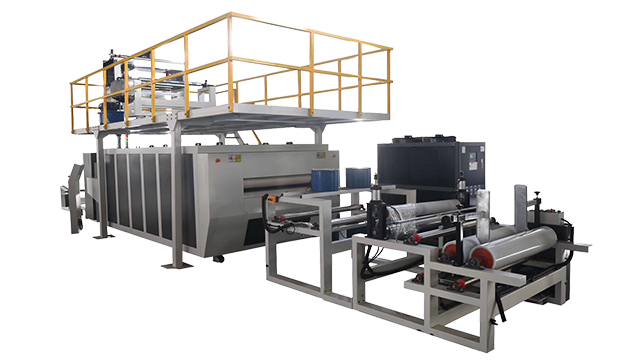

Our flatbed laminating machines are continuously working, double belt presses with integrated contact heating and contact cooling.

Powder spreader: fully automatic computer control, originated in Germany. Accurate powder control, with an error of less than 1 gram per square.

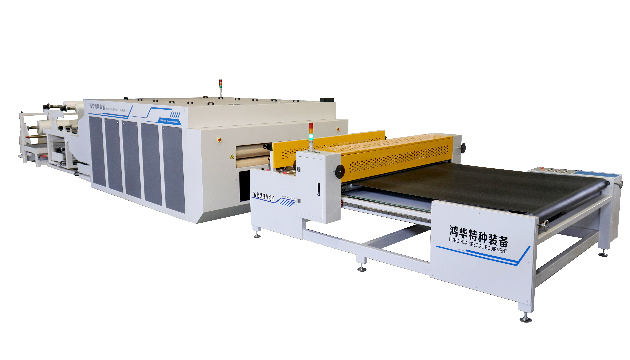

The cutting machine is equipped with an automatic fixed-length cutting guide rail with a conveyor table, the cutting end surface is flat, and the cutting speed is fast. It is integrated with the flat composite machine, which greatly improves the production efficiency.

Accessories option

The Flatbed laminating machine mainly transfers temperature and pressure through two upper and lower conveyor belts, and heats and combines two or more materials into one body. This machine integrates contact heating and cooling systems. The composite material will be uniformly heated, and the material will be cooled before leaving the upper and lower belts for pressing. Depending on the length of the heating zone, the material will fit perfectly and have a good bonding firmness. The upper and lower bands have even gaps and precise spacing adjustments to ensure a smooth surface without wrinkles. It is a kind of flat heating compound equipment which is widely used to bond fabric or non-woven fabric with adhesive resin by controlling temperature, speed and pressure. It can be used to achieve continuous work and small batch test production.

Flatbed Laminating Machine

The materials to be laminated are gently heated the individual lengths of the heating zone achieve an optimal bonding with strong adhesive strength. After heating up the material, it is pressed by means of calander rollers or, per request,calibrated to a defined thickness. Additional stabilization is reached by the cooling process inside the machine. Because of high precision workflow, flat passing, as well as precise height adjustments high strength blanks up to a thickness of 150 mm can be laminated.

Heating and cooling in perfect balance

One side lamination

Both side lamination

One side coating

Both side coating

One side -no adhesive

Both side -no adhesive

Base material: paper, non-wovens, felts, fleece, foams in roll or in piece materials, paper / PP boards
First / second layer: various textiles, PE foils, PU foils, aluminium foils, self-adhesion tapes

Laminating option

Adhesive option

glue powders

glue webs

glue films

liqued glue

0 to 150 mm (5.90“)

Height adjustment

1,150

Cooling zone (mm)

1,300

Heating zone (mm)

1,100 1,300 1,500 1,700 1,900 2,100 2,300 2,500 2,700

Width (mm)

Technical data

Control zones (number)

Running speed (m/min.)

0.5 to 30

Control zones (number)

Designed in sturdy frame construction, we install separately spring mounted elements, large roller diameters for precise pressure and combine chain guided, servo-driven conveyor belts.The reliable and powerful heating system can be designed in three different versions of heating capacities.
The 18 control zones are electrically heated.For optimal energy conservation, heating and cooling sections are insulated. The height adjustment as well as the level adjustment of the top pressure roller is motor-controlled by means of a precisely adjustable lifting spindle. All relevant parameters can be set and controlled via proven SIEMENS touch control.

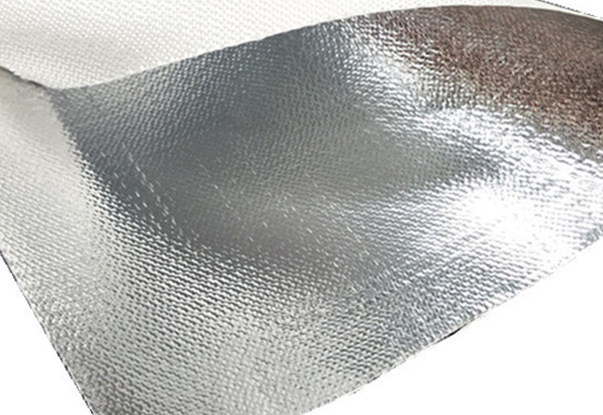

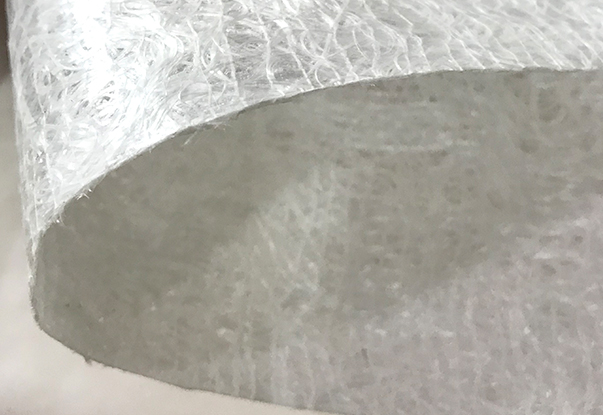

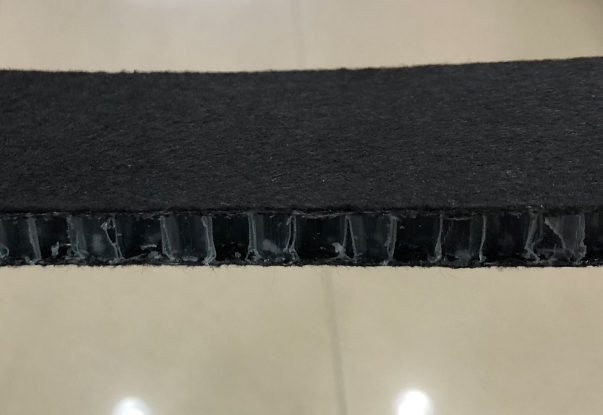

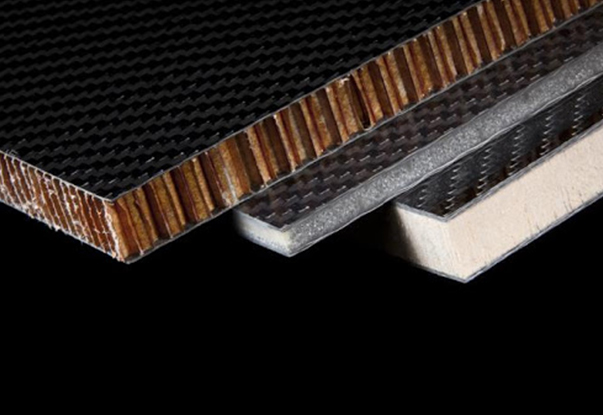

Customer's materials: car roof material, aerogel felt, recycled fiber material, recycled cotton composite material, UHMWPE/aramid fiber, ceramic fiber felt composite material, 3D fabric composite material, glass fiber sheet, PP honeycomb panel, carbon fiber fabric composite Materials, filter composite materials, etc.

Our equipment has increased the output of these industries and greatly improved the efficiency of enterprises.

Higher energy input for increased demands

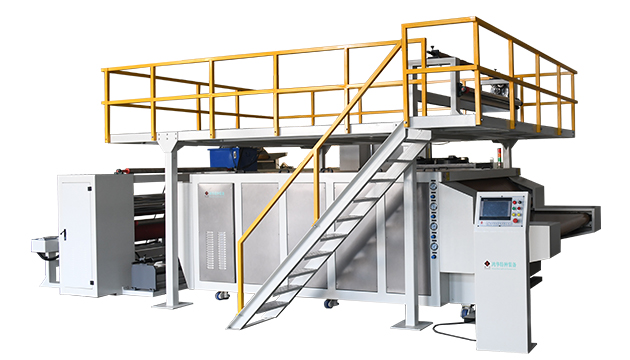

Intelligent and independent control multi-layer feeding rack, suitable for light-weight coils. This equipment has a motor to drive a synchronous wheel to drive the cylinder to roll. The discharge method is stable and fast, and the material discharge law is a more commonly used upper Material method.

The overhead machine effectively saves space for customers.

The gluing device makes the liquid glue spread through several intercept valves, the liquid glue is evenly attached to the material, and the glue is evenly applied.
