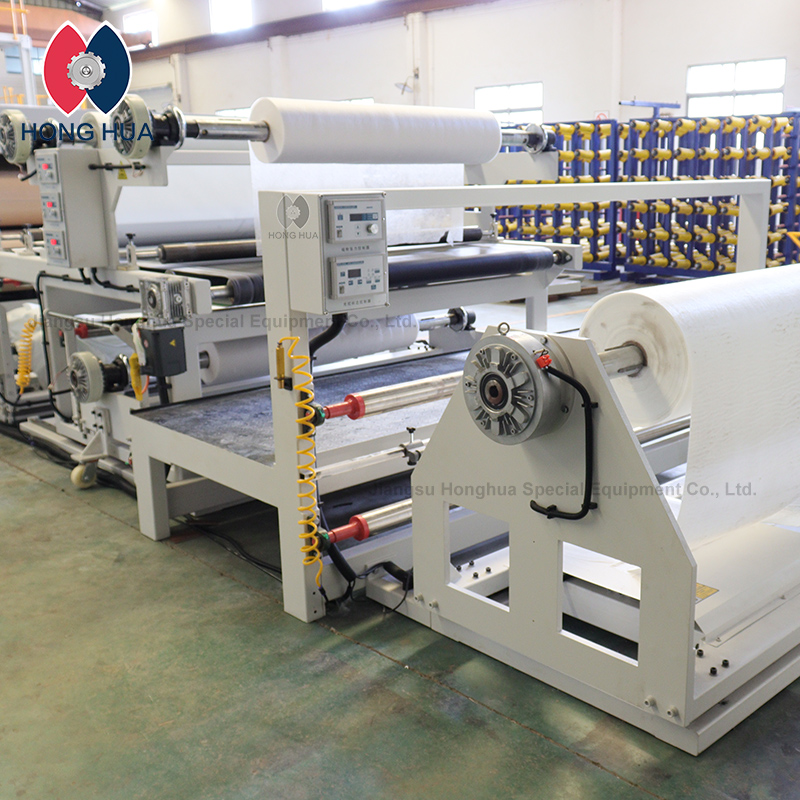

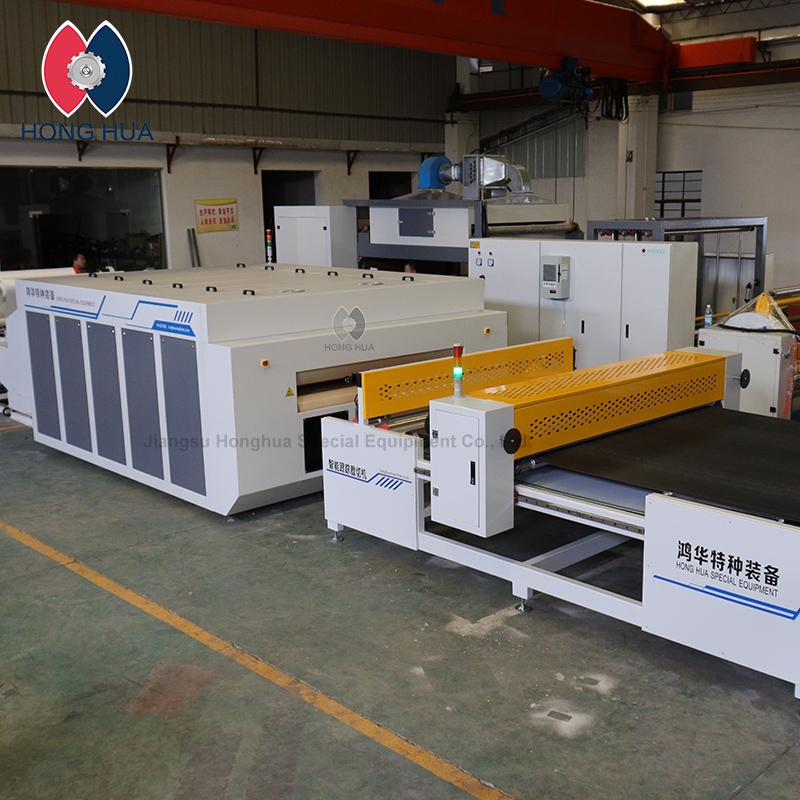

1.8M Flatbed Laminating Machine for Glass Fiber/Carbon Fiber/Ceramic Fiber/Prepreg

This new type of flat laminating machine transfers pressure through the upper and lower conveyor belts and integrates the contact heating and cooling system. The composite material will be uniformly heated. Due to the sufficiently long heating zone, the material will be perfectly composited and has a high Strength, the materials can be combined together after heating, and the height of the material can be adjusted by the pressure roller. In order to ensure the composite strength, the material is cooled before going out of the conveyor belt, through the gap between the conveyor belts and precise height adjustment, even if it is a 150mmd rigid plate. Can be compounded. Instead of the traditional steel belt flat composite machine, the production capacity can be increased by more than 15 times.

This double belt flatbed laminating machine is suitable for industrial textiles (textile composite membrane of the automobile industry (PU-) foam composite material of composite sensitive films) (honeycomb material multi-layer fiber composite filter material) (activated carbon filter non-woven material (processing) medical material compression film attached).

Features:

1. The flat-bed conveying design can convey soft coils or hard plates. From soft foaming materials and textiles to hard carbon steel plates can be processed by this system.

2. The temperature zone thermal control is distributed in the upper end, lower end, middle section and edge area of ​​the conveying channel. The temperature of each temperature zone can be set independently, which provides a perfect solution for different heating temperatures on both sides of the material.

3. Both roll and sheet can be processed, and the combination of sheet + roll + sheet can also be processed.

4. The conveying system does not produce tension on the material during the whole process, and provides an ideal conveying method for unidirectional materials (non-weft cloth), jacquard fabrics, very soft non-woven fabrics and other loose structure products.

5. Pressure can act on the material during the heating and cooling process, and the material can be accurately compressed to a specific thickness and shaped as needed.

6. Multi-layer materials can be completed in one step.

7. It can be fed from light and thin materials of a few microns to thick materials of 150mm thickness.

8. The roller pressure system can provide additional pressure, and a single set of cargo can be designed with multiple pressure systems as required.

9. The working speed of the equipment can be selected according to the characteristics of the material.

10. The upper and lower conveying devices can output zero pressure when conveying materials, and can output strong pressure. 11. The composite equipment can be integrated into a large number of auxiliary equipment to form a complete production line, and can also be used as an independent equipment.

Double belt lamination compound machine widely used as a flat type heating composite device in which a viscous resin-attached fabric or non-woven fabric is controlled to have its own adhesion by controlling temperature, speed, and pressure. Can be used to achieve continuous work, but also small batch test production.
